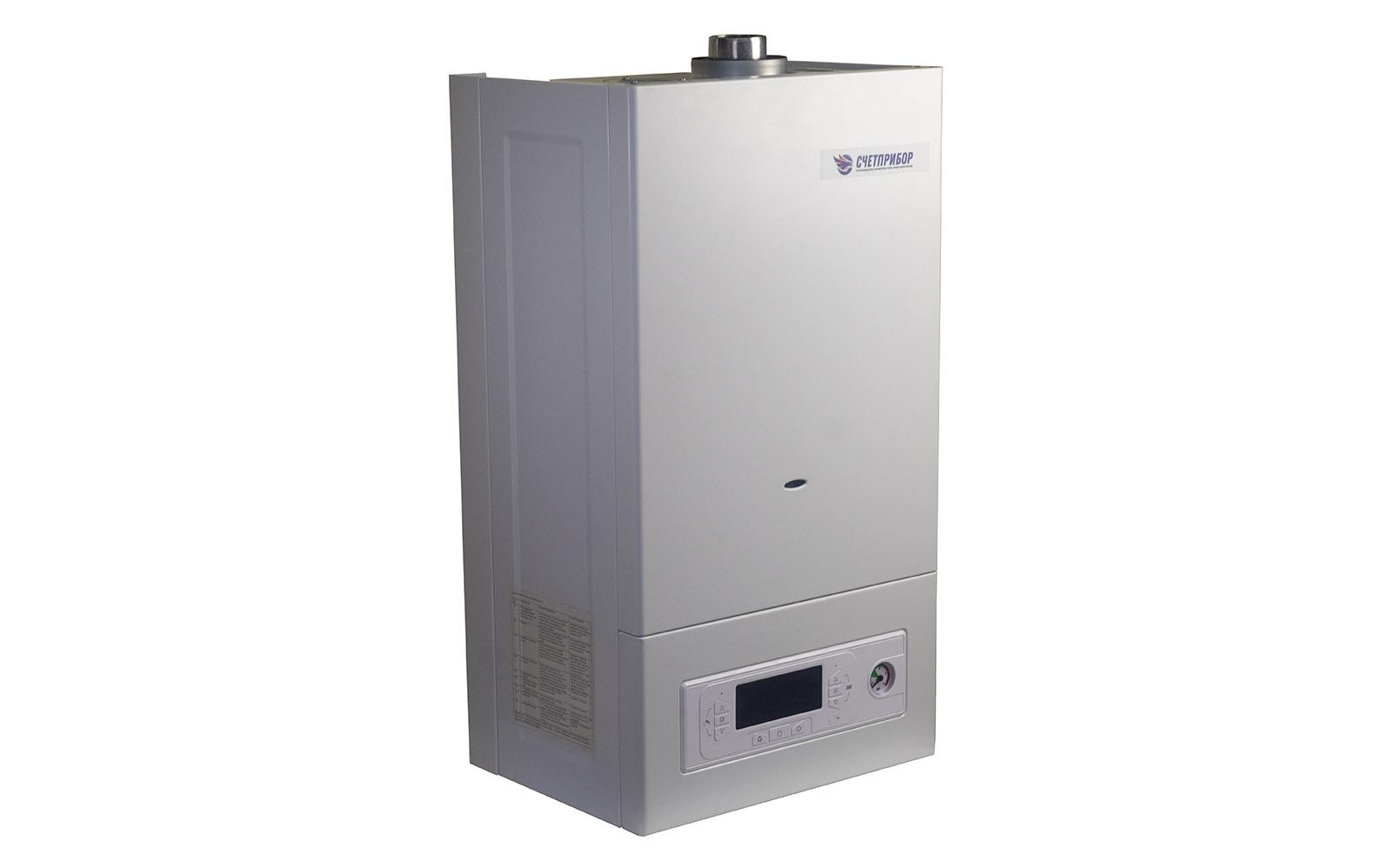

Wall-mounted gas-fired boiler
Tool production
Intended use: heating and hot water supply
Application: domestic
Boiler models (versions): KG-16, KGN-18, KGN-20, KGN-24, KGN-28, KGN-32, KGN-36, KGN-40, KGN-46, KGN-50
2 and hot water supply (HWS) with a capacity for hot water heating (∆T= 30° C) from 6.6 to 21 l/min. The wall-mounted boiler is used as an autonomous source of heat supply and is operated only in closed heating systems.
The boiler is fully automatic. The volume of the boiler membrane tank (6-10 liters) is designed for 80 liters of heat carrier in the heating system. If the volume of the heat carrier in the heating system exceeds the specified values, then it is necessary to install an additional membrane tank and connect it to the return heating line in the immediate vicinity of the boiler with a capacity depending on the volume of the system.
- Rated natural gas pressure, Pa
- 2000
- Consumption of reference natural gas, m3/h
- 0.85-1.6
0.85-1.8
0.85-2.0
0.9-2.4
1.0-2.8
1.2-3.2
1.4-3.6 - Heated area, m2
- 40-80
50-90
60-100
60-140
80-220
100-260 - Thermal efficiency, %
- >90
- Expansion tank volume, l
- 6
8
10 - Size (length/width/height), mm
- 740/410/305
740/470/310
740/470/320
740/510/320
740/590/320 - Weight, kg
- 31
32
33
36
38
41.5
