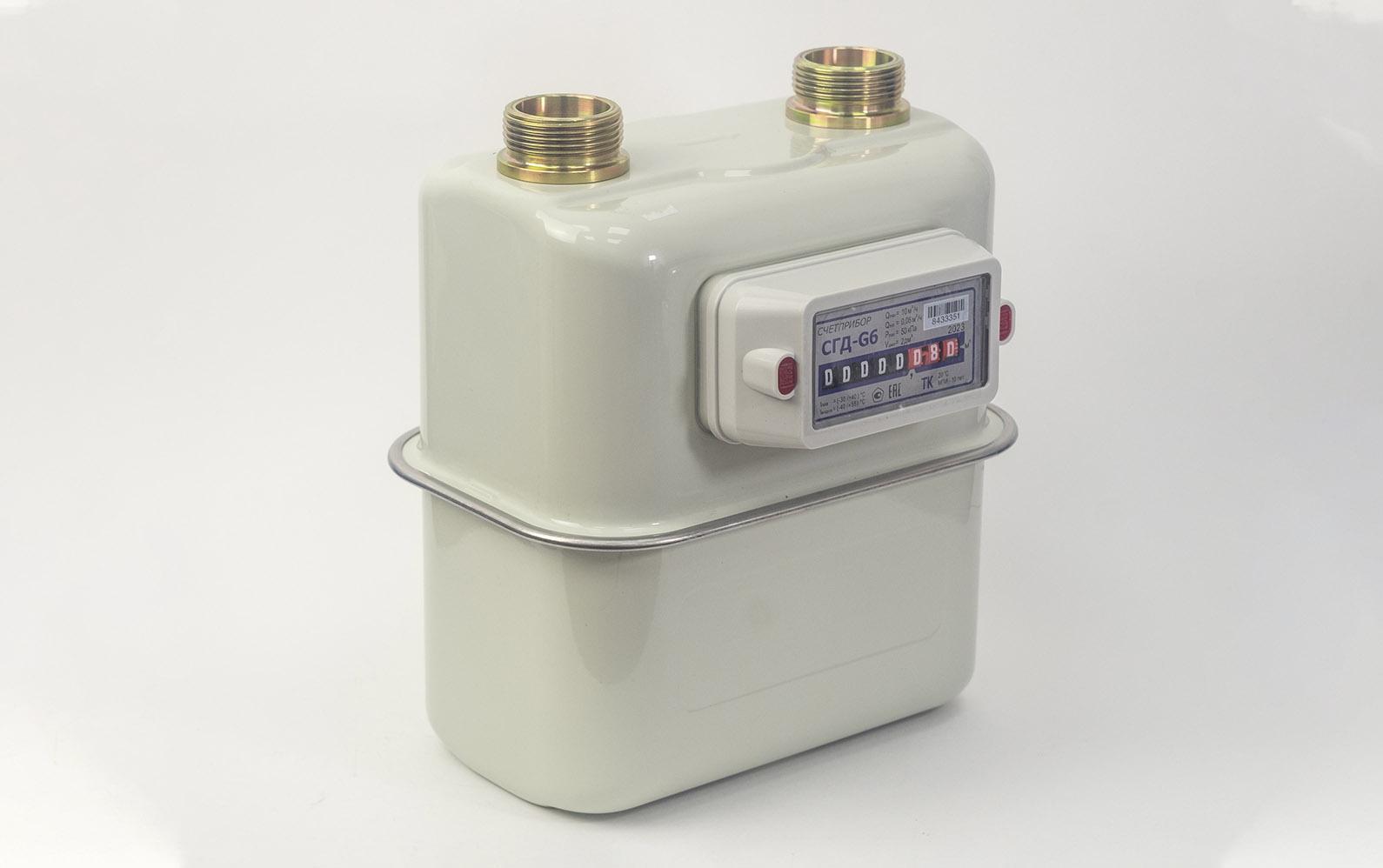

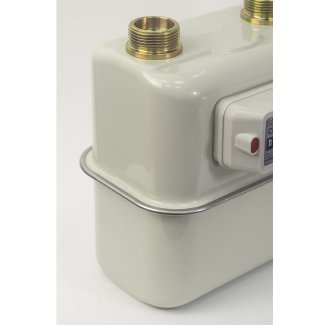

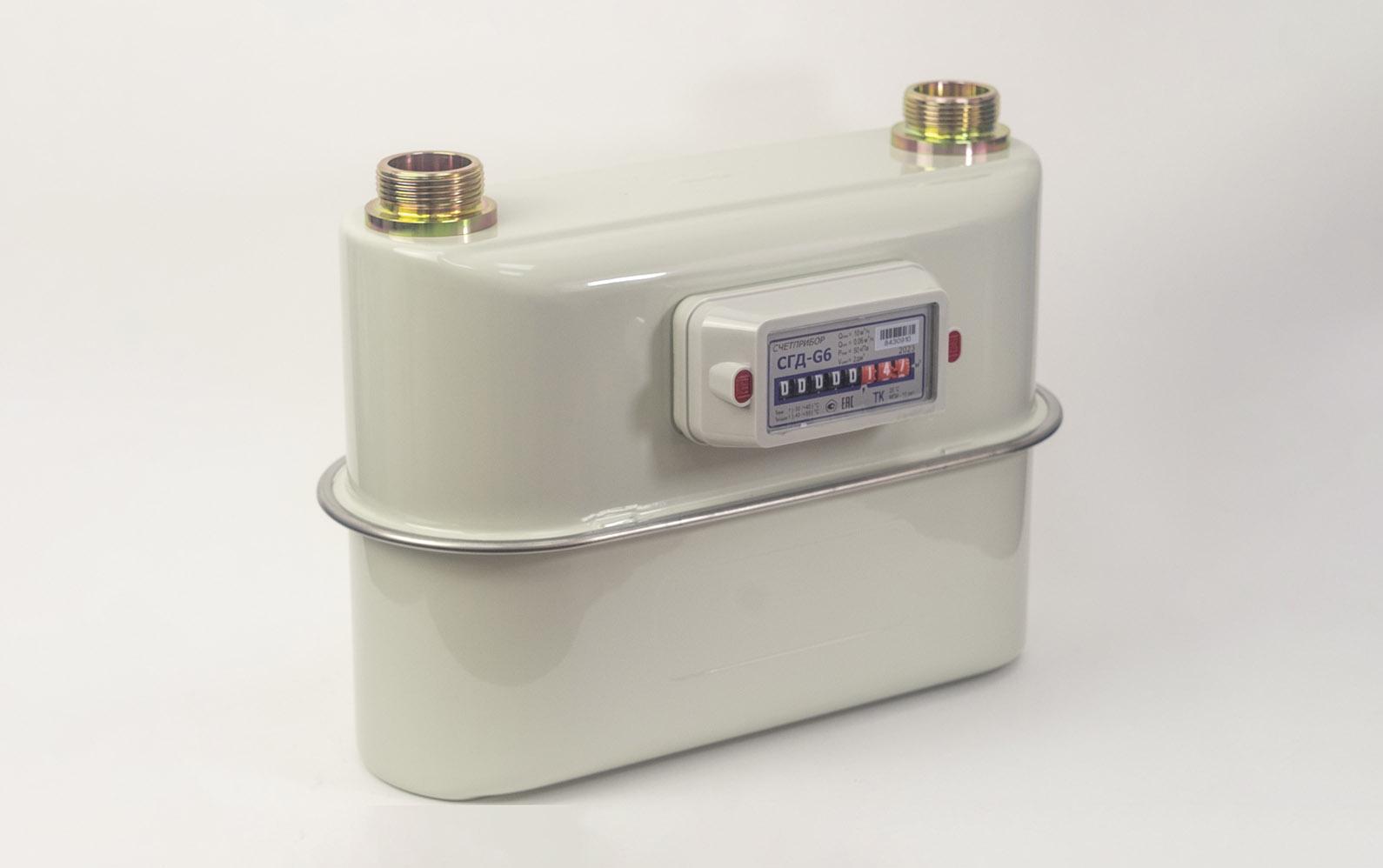

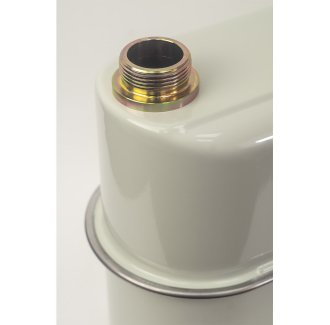

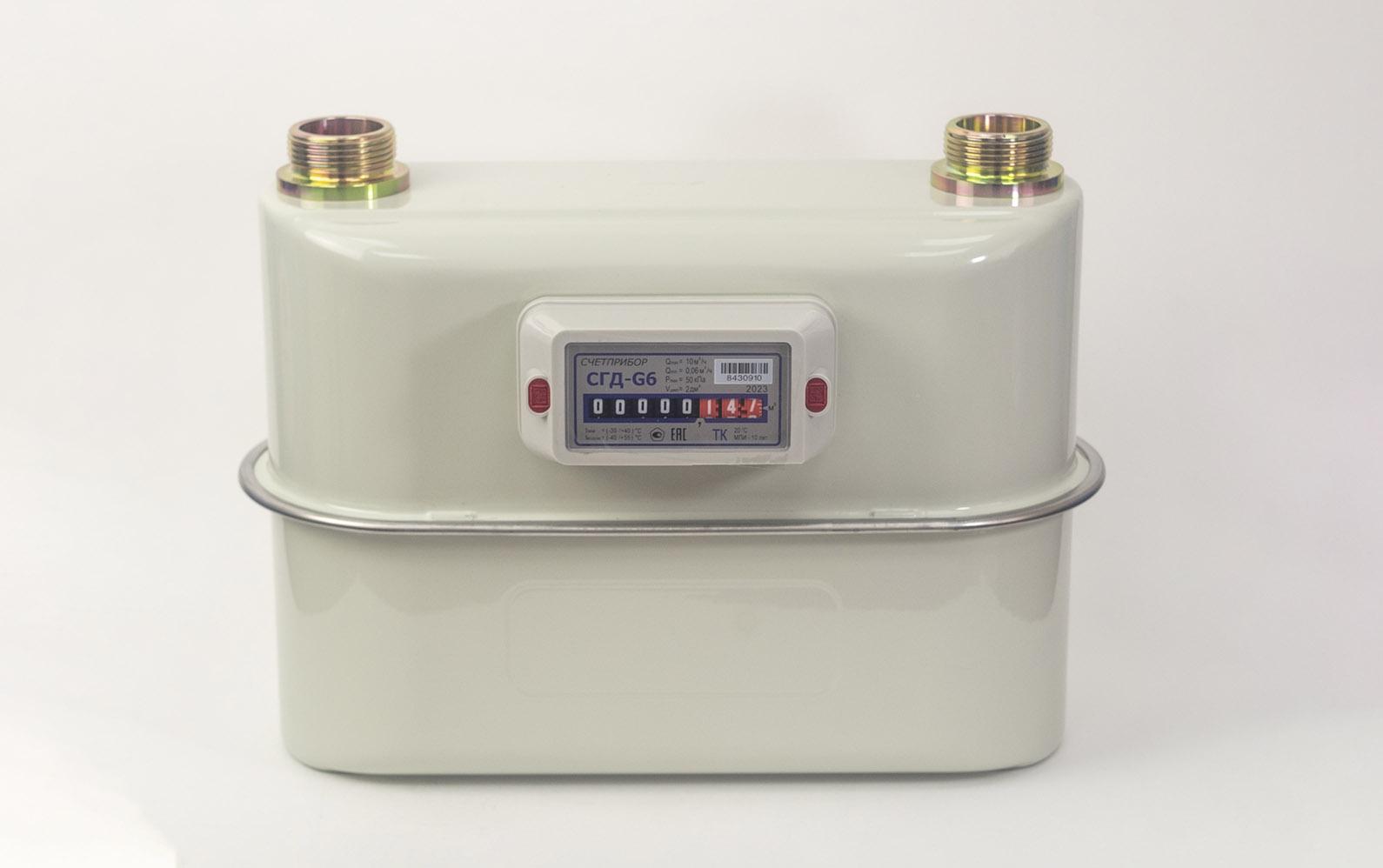

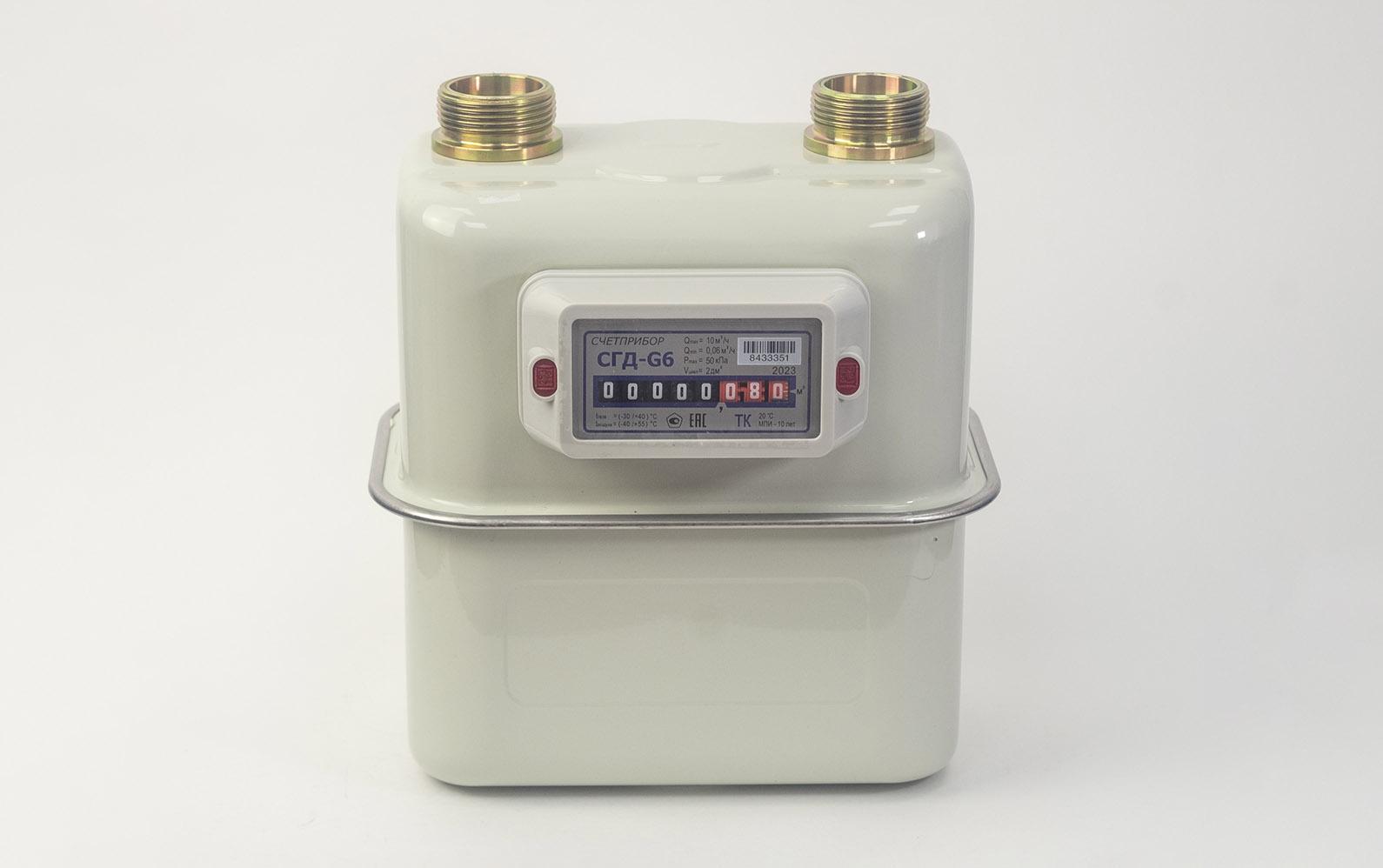

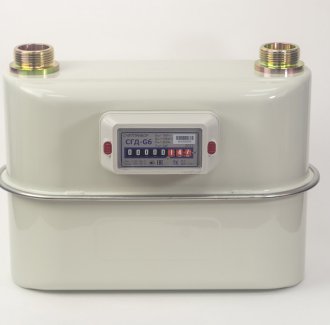

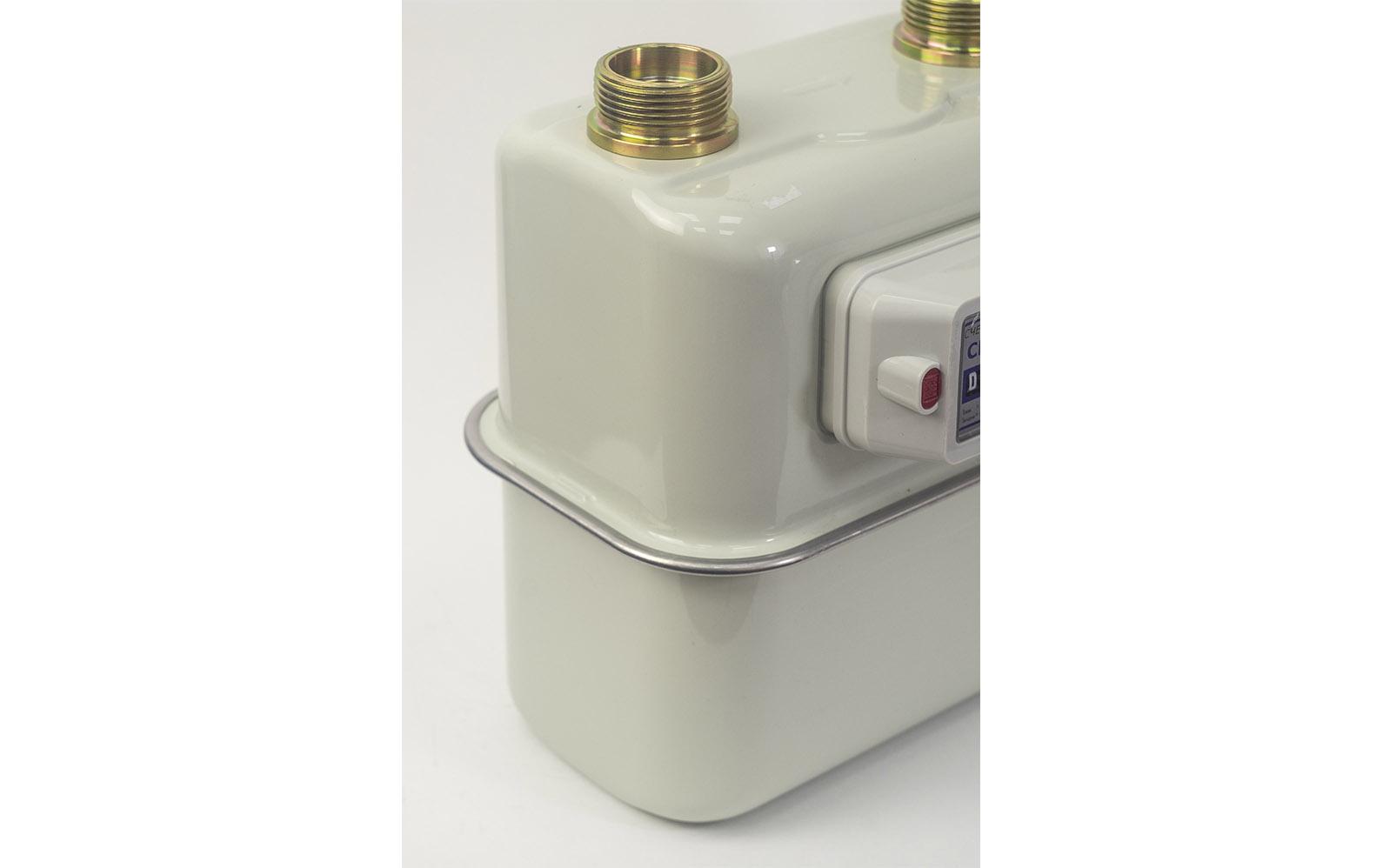

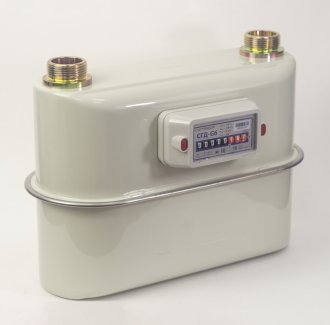

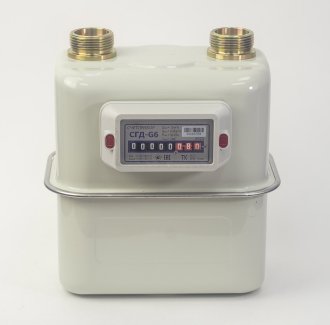

Volumetric orifice gas meter SGD-G-6

Volumetric orifice gas meter Schetpribor SGD-G-6 is designed for measuring the volume of natural gas or liquefied gas vapor.

Application: in apartments and individual houses.

Principle of operation of the meters is based on the conversion of pressure drop of the gas passing through the meter into reciprocating motion of the orifices of the measuring mechanism, which is converted into rotational motion through the lever mechanism and transmitted to the metering device through the drive shaft.

Intended use: for gas consumption metering

Cyclic volume, dm3: 2
Rated volume flow rate Qr, m3/h: 6
Maximum volume flow rate Qmin, m3/h: 10
Minimum volume flow rate Qmin, m3/h: 0.060
Center-to-center distance between fittings (S), mm: 110, 130, 150, 250

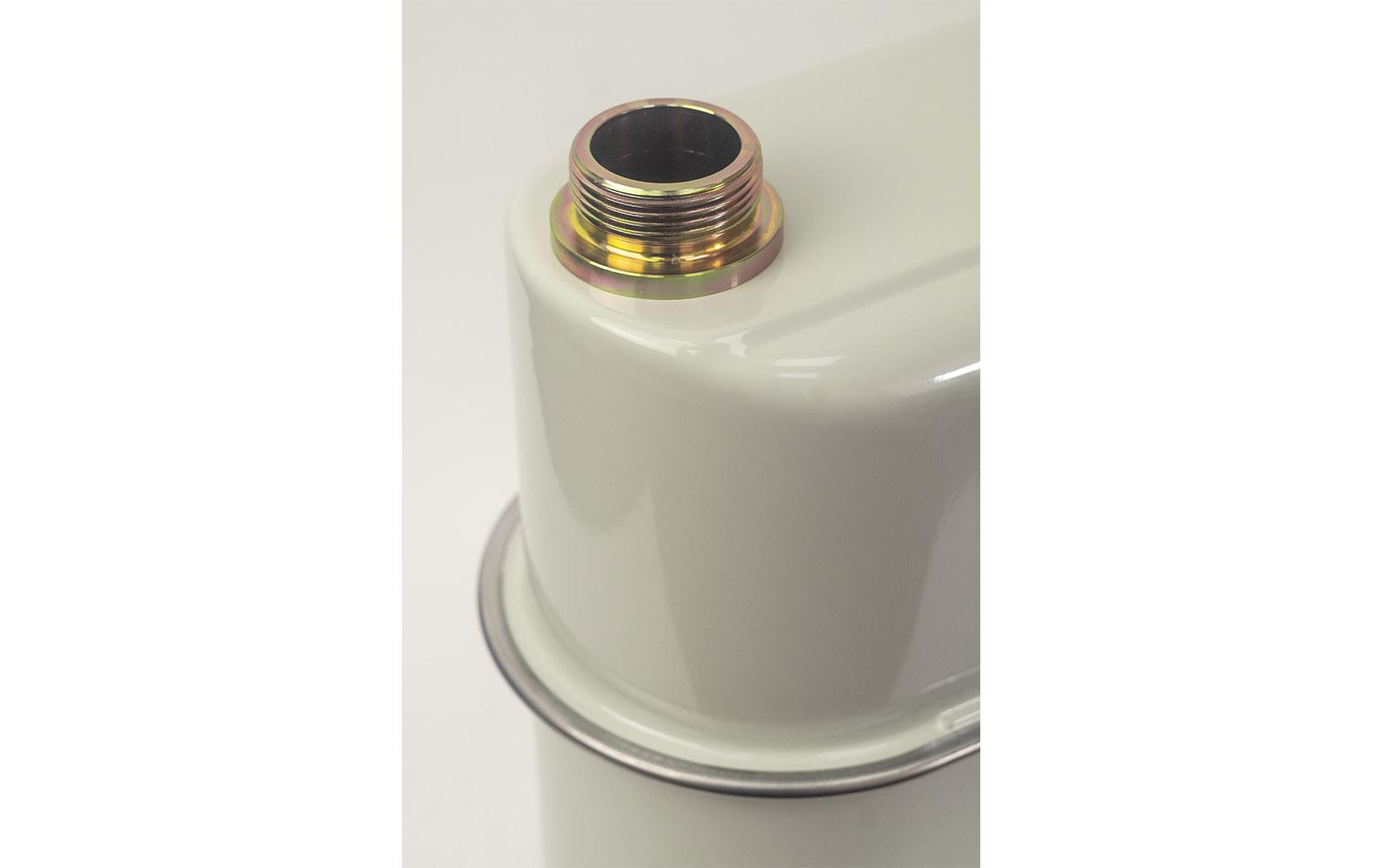

Connection thread of the inlet and outlet (F): - under GOST 6357-81, inch - under GOST 24705-2004, mm: ¾, 1, 1 ¼ М30х2, М36х2
Weight, kg, not exceeding: 2.3
Size, mm (length/width/height), mm: 223(340)/181/248
