Ultrasonic gas meter SGU-G-1,6
The meter is designed for measuring and commercial recording of the consumed volume of natural gas according to GOST 5542, used for domestic and industrial purposes, with its reduction to standard temperature conditions according to GOST 2939 by automatic temperature compensation (TC).
The meter consists of: an ultrasonic gas flow converter, which is mounted in a gas pipeline, and an electronic module with an LCD indicator and a lithium battery.
The indicator displays the accumulated gas volume. The digits to the left of the point show the volume of gas in cubic meters, and the three digits after the point - in fractions of a cubic meter. The presence of initial indications is due to testing and primary verification.
- General specifications of SGU
- Certificate of Conformity under GOST R
- Pattern Approval Certificate
- Declaration of Conformity of the Customs Union
- SGU operation manual

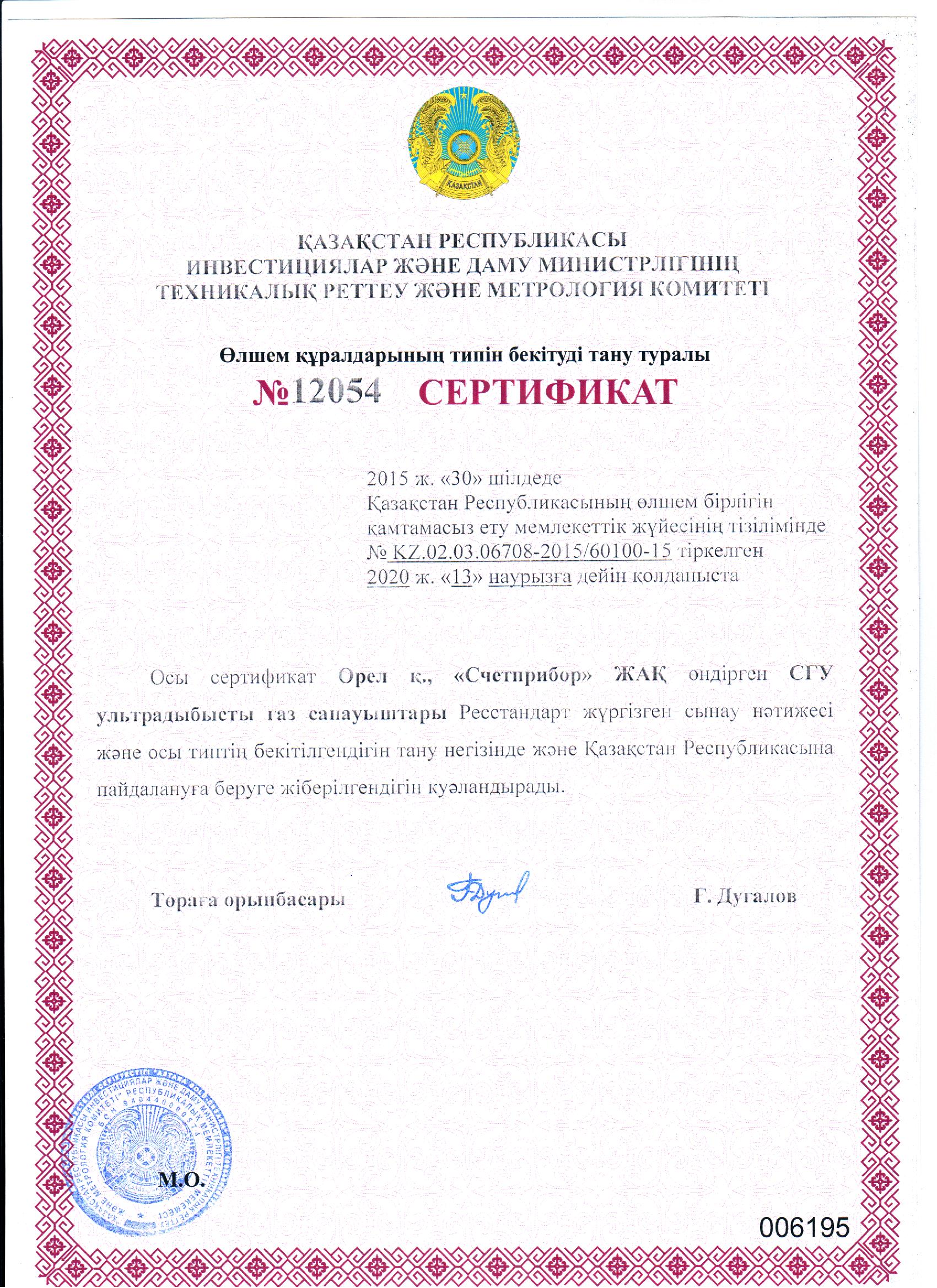

- Certificate of Conformity of the Republic of Kazakhstan (in Kazakh)
- Certificate of Conformity of the Republic of Belarus (in Belorussian)
- Certificate of Conformity of the Republic of Belarus

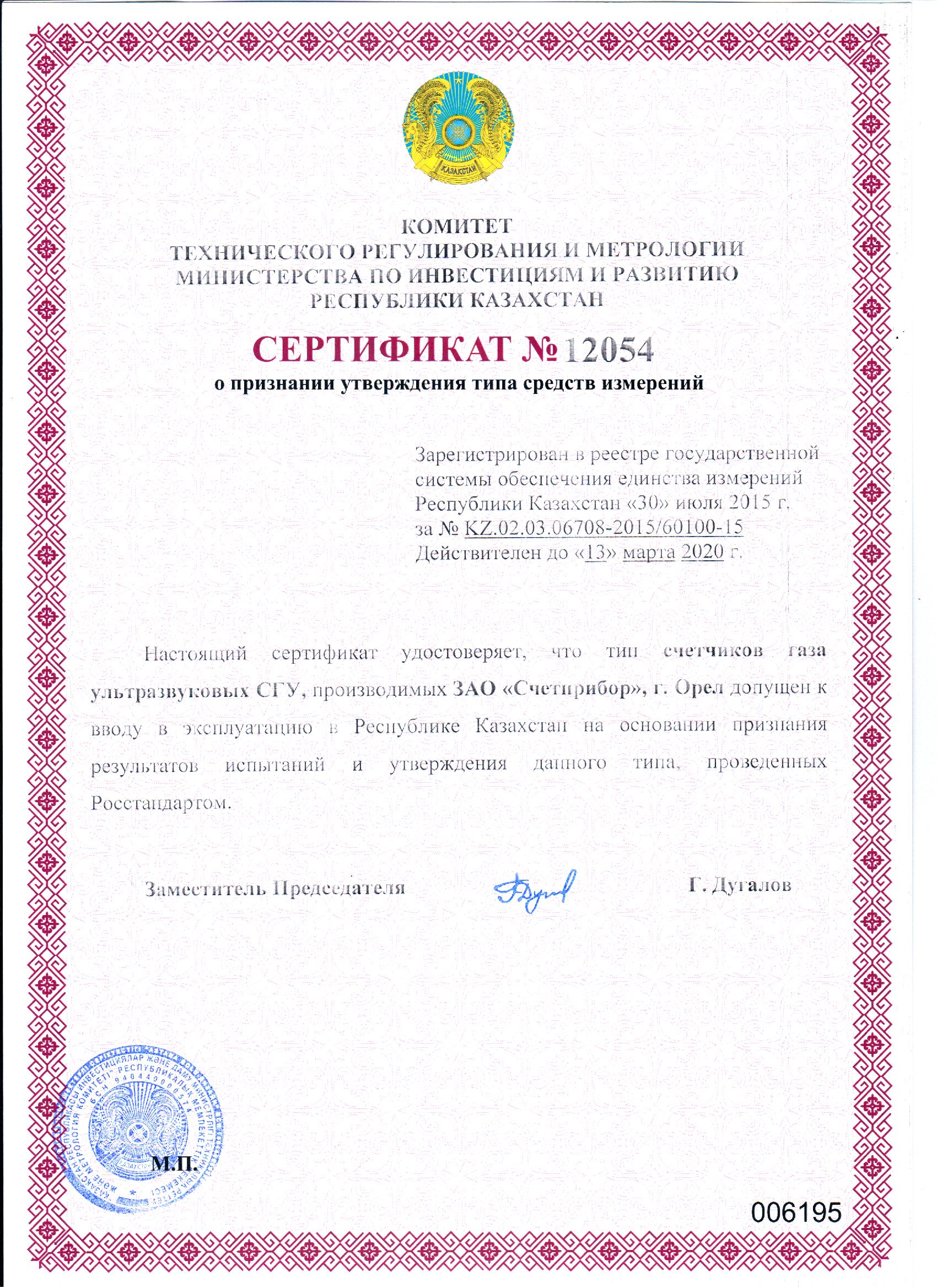

- Certificate of Conformity of the Republic of Kazakhstan

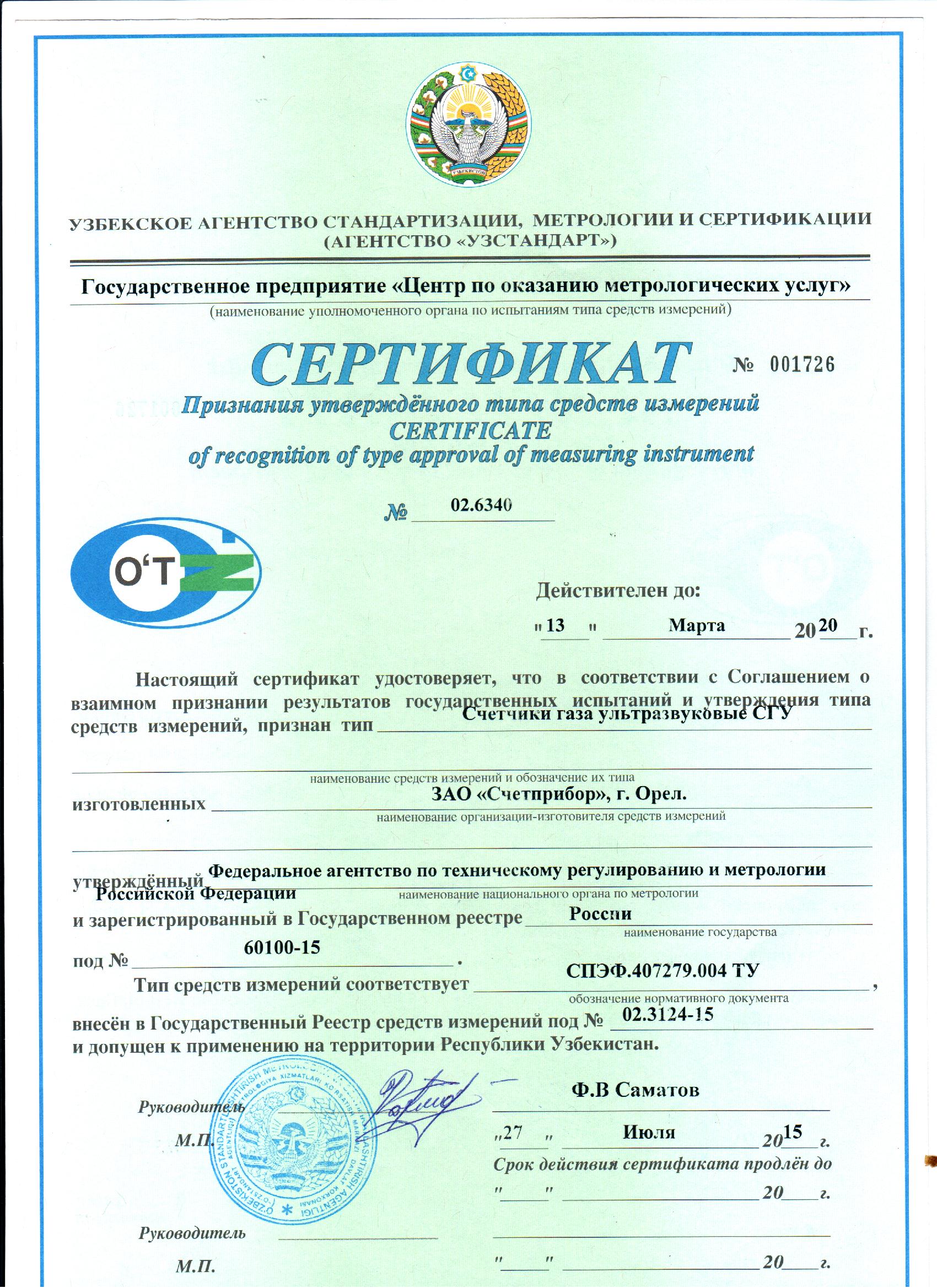

- Certificate of Conformity of the Republic of Uzbekistan
- Rated volume flow rate Qr, m3/h
- 1.6
- Maximum volume flow rate Qmin, m3/h
- 2.5
- Minimum volume flow rate Qmin, m3/h
- 0.016
- Size, mm (length/width/height), mm
- 210/110/70
- Lithium battery power supply voltage, V
- 3.6
- Connecting thread under GOST 6357-81, inch
- 3/4
- Inside diameter (ID), mm
- 15
20 - Weight, kg, not exceeding
- 0.6
